Handheld QR Code Scanner With Excellent Performing ,Lottery Barcode Scanner Reader
K-626 this 1d and 2d barcode scanner adopt advanced image technology and deliver excellent decoding performance on 1D and 2D barcodes ,keep your checkout lines moving fast and improve the customers shopping experience ,it can read both barcodes printed on label and moible phone screen.
Product Specification:
| Performance Parameters |
| Light Sources | 617nm LED Aimer, White LED |
| Supported Symbologies | 1D: EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN 128, Codabar, Interleave 2 of 5, ITF-6, ITF-4, ISBN, ISSN, MSI-Plessey, GS1 Databar, GS1 Composite Code, Code 11, Industrial 25, Standard 25, Plessey, Matrix 2 of 5. 2D: QR Code, Data Matrix, PDF417, Mircor PDF417, Aztec, Maxicode, Mircor QR, Hanxin Code. |
| Scan Type | Image CMOS |
| Resolution | 640*480 |
| Scan Method | Manual/Continuous/Automatic scanning |
| Scan angle | Yaw 60°,Rotation 360°,Pitch 60° |
| Precision | ≥5mil |
| Depth of scan field | EAN13 50-200MM(13mil); QR 25-240MM(20mil); PDF147 30-130MM(6.67mil). |
| Error Rate | Less than 1/5million |
| Interface | USB-HID, USB-COM, RS232 |
| Physical Parameters |
| Dimensions | 102mm*71mm*177mm |
| Weight | 162.3g |
| Material | ABS+PC |
| Cable Length | 2m |
| Environmental Parameters |
| Operating Temperature | -20℃~+50℃ |
| Storage Temperature | -40℃~+70℃ |
| Relative Humidity | 5%~95% RH(Non-condensing) |
| Ambient lighting | 0~100000LUX |
| Drop/Shock Resistance | Withstands multiple times 3 meters drops to concrete |
| Electrical Parameters |
| Voltage | DC5V±5% |
| Operating Current | 170mA |
| Standby Current | USB 25mA; RS232 2uA |

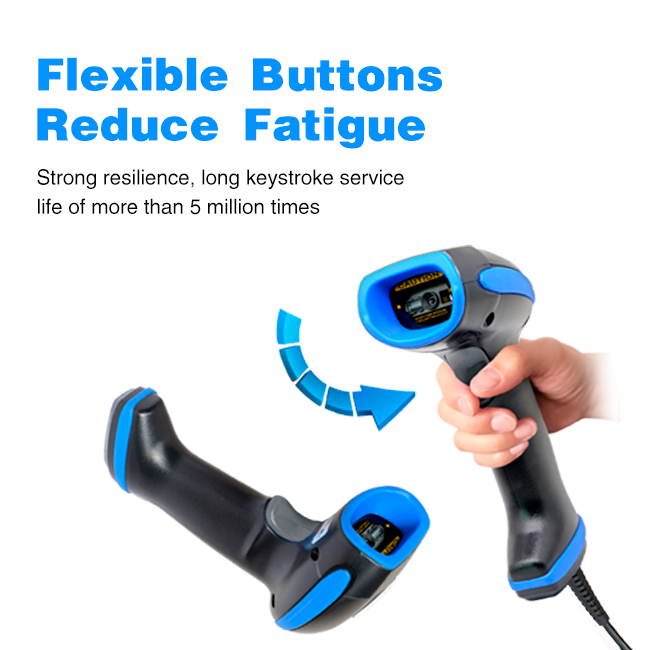

Product Pictures:
Product Features:
• With USB cable for connection, plug and play, no need to install any software or drivers, simple operation.

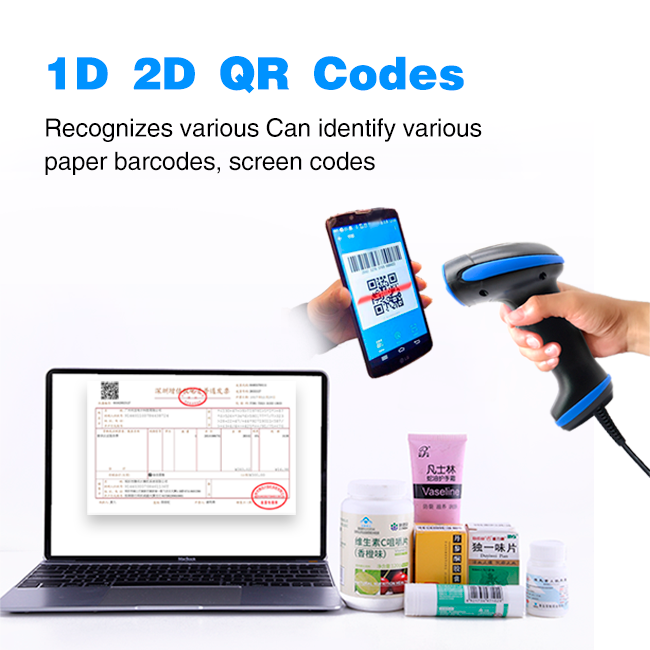

• Multi-functional scanner, great for scanning most of 1D barcode and 2D barcode on paper and screen. Support to put prefix or suffix before or • • after scanned data.
• Support connection with computer, laptop. Compatible Operating System for Linux, Android, Windows
• Made of great ABS+PC materials,high shock-resistant (Drop Test: 2m fall to concrete) and durable plastic material guarantees long service life.
• Having fast scanning speed, high sensitivity, stable performance and high recognition rate, widely used in supermarket, convenience store, library, drugstore, retail shop, catering services and other industrials.
FAQ:
1, What are the differences between 1D and 2D barcodes?
The biggest differences between 1D and 2D barcodes is 1d barcodes only one dimension like EAN8 ,and2D barcodes has two dimensions like QR
2, Can this Usb automatic barcode scanner read barcodes from tablet ?
Yes , it is 2d barcode scanner with cmos technology can read from tablet or other mobile devices screen
3,is it working with my windows pos systems ?
Yes ,this usb barcode scanner can easy integrate with your pos sytems ,plug and play
4,Can this code barcode scanner read 1d barcodes ?
Yes , all 2d barcode scanners can read 1d barcodes like EAN13,EAN8,Code 39 ,interleaved 2 of 5 etc
5,Can we brand our own logo for this barcode scanner gun?
Yes ,OEM barcode scanner service is available
