Handheld USB 1D/2D Barcode Scanner ,QR Code 2D Handheld Barcode Reader For Retail ,Point Of Sales
Product Description:
With a design that unifies ergonomics with slim, this handheld 2d barcode scanner ensures the comfort and productivity of its operator and also meets modern-day aesthetic standards.The 1D/2D handheld barcode scanner provides a cost-effective data capturing solution that allows users to enjoy the capabilities of a 2D barcode scanner, for the price of a 1D barcode scanner.
Product Features:
• High-performance CPU that captures high-density, high-volume, and distorted barcodes on paper or screen
• Cost efficient (2D scanning capabilities for the price of a 1D scanner)
• Can plug directly into any Point of sales machine or other PC
• Support multiple languages and custom prefix & suffix
Product Specification:
| Light Sources | 617nm LED Aimer, White LED |
| Supported Symbologies | 1D: CODE128,EAN-13, ISBN,ISNN, EAN-8, UPC-A, UPC-E, Code 39, Code 39 Full ASCII, Codabar, Code 93, Interleaved 2 of 5, Industrial 2 of 5, IATA 2 of 5, Matrix 2 of 5, Code 11, MSI Plessey, GS1 128, code32 2D: QR Code, Data Matrix, PDF417, Micro PDF417, Aztec Code, Micro QR, Direct Chinese |
| Scan Type | Image CMOS |
| Resolution | 640*480 |

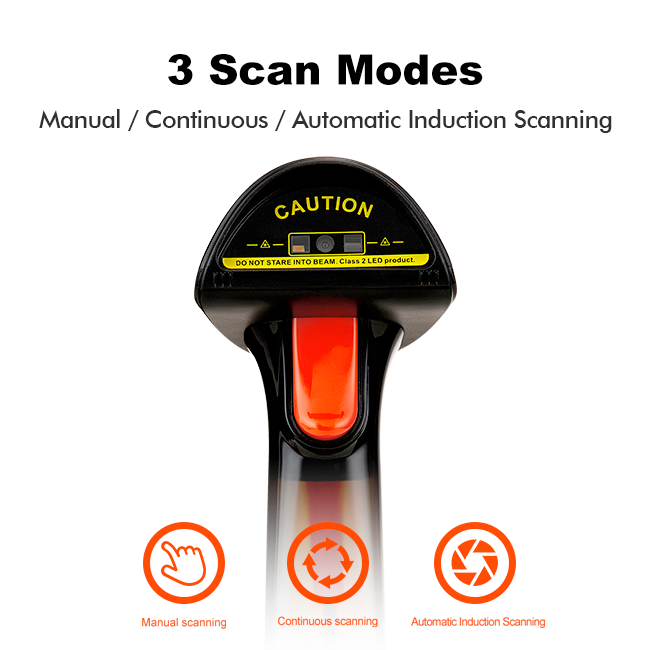

| Scan Method | Manual/Continuous/Automatic scanning |
| Scan angle | Yaw 60°,Rotation 360°,Pitch 60° |
| Precision | ≥4mil |
| Depth of scan field | 30mm-230mm (EAN13 13mil 90%PCS) |
| Error Rate | Less than 1/5million |
| Interface | USB-HID, USB-COM, RS232 |
| Physical Parameters |
| Dimensions | 70.5mm*86.2mm*165.2mm |
| Weight | 100g |
| Material | ABS+PC |
| Cable Length | 2m |
| Environmental Parameters |
| Operating Temperature | -20℃ ~ 50℃ |
| Storage Temperature | -40℃ ~ 70℃ |
| Relative Humidity | 5%~95% RH(Non-condensing) |
| Ambient lighting | 0~100000LUX |
| Drop/Shock Resistance | Withstands multiple times 1.5 meters drops to concrete |
| Electrical Parameters |
| Working Voltage | DC5V±5% |
| Operating Current | 120mA |

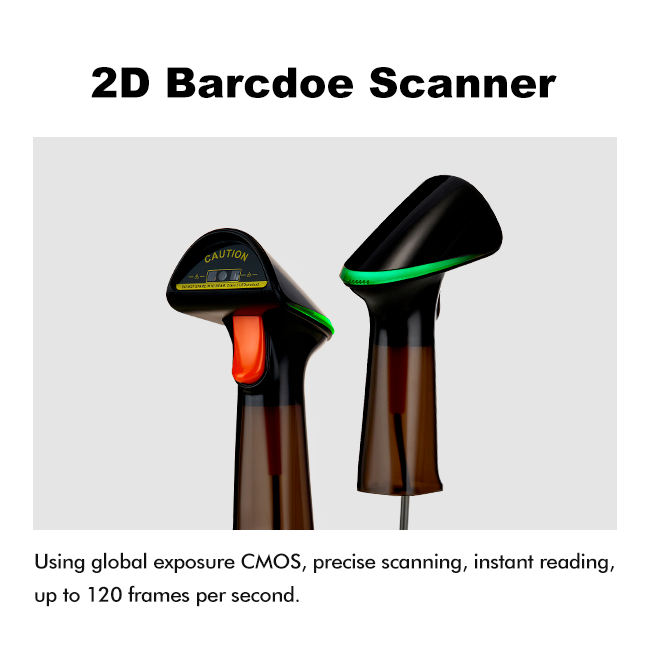

Product Pictures:
Product Application:
Point of sales
Public library
Transportation and logistic
Supermarkets
Shopping mall
Convenience stores
FAQ:
1, What kind of interface this 2d handheld barcode scanner support ?
It is fixed cable ,so it is only support USB ,but RS-232 interface is available
2, Does this handheld 2D barcode scanner read barcodes from mobile screen?
Yes ,it can read both paper and mobile screen barcodes
3, Are you a manufacturer?
Yes ,our factory located in guangzhou ,China
