Handheld 1D 2D Barcode Scanner Wired Android Portable Bar Qr Code Reader
Product Description:
Our K-625 scanner is with high performance. Adopt high-performance hardware to accelerate decoding chipscan code quickly and accurately. You can use the product to scan 1D or 2D barcodes from screen or paper. This handle held barcode scanner can be used for Store, Restaurant, Pharmacy, Clothing, Supermarket, Warehouse, Logistics, Library, Hospital, Warehouse.
Product Features:
1. Speed up transactions and avoid human errors in every retail or hospitality environment.

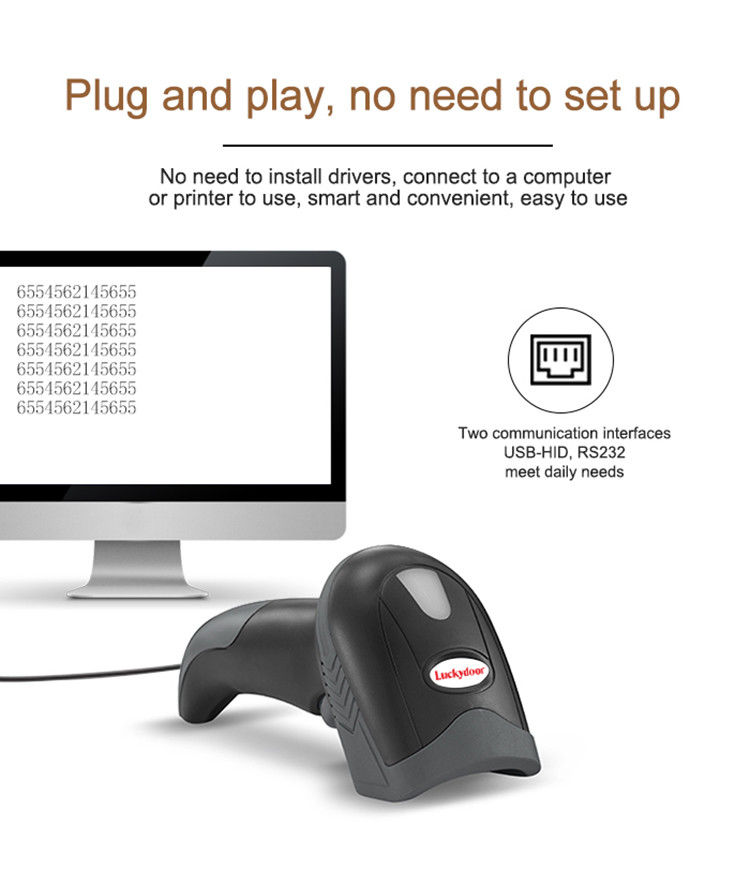

2. The USB Barcode Scanner is plug and play, MATCH VARIOUS SYSTEMS, Connect to the usb port of laptop or desktip
3. Support quick scanning, even with poor or damaged barcodes.
4. The scanner can also be configured to autoscan without having to press the trigger.
Product advantage:
1. Excellent Error-Correcting Performance, Strong Decode for Damaged Incomplete Barcode, fuzzy barcode, Twsited Wrinkledbarcode, Reflective barcode, Colorful and Long Barcode etc.

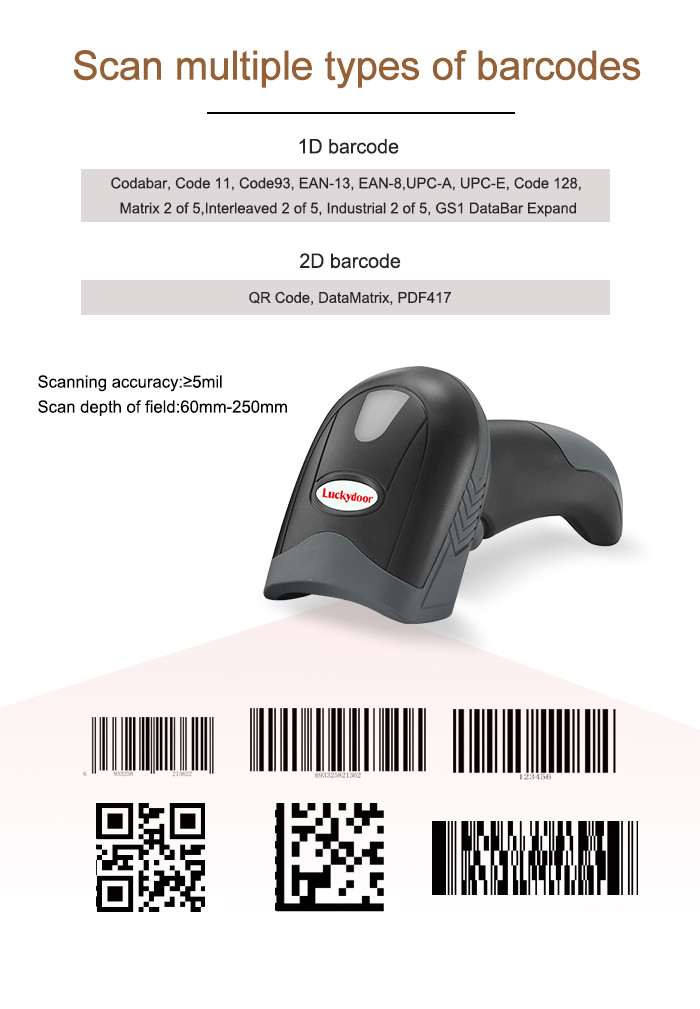

2. Excellent Decoding Ability, Support All 1D/2D Bar Code In The Market, such as QR Code, PDF417, Data Matrix
3. Fast Accurate Reading Speed: 32Bit CPU super decoding ability that the speed can up to 250mm/sec.
4. Provide 25 kinds of languages (Please write to our customer-service if you need Spanish, German, French, Italian, Japanese instructions which we can provide PDF manual for you).
5. Add custom prefixes/ suffixes, delete characters. Add keyboard keys/ combinations (terminator TAB, CR&LF, etc.)
Product Specification:
| Performance Parameters |
| Light Sources | 617nm LED Aimer, White LED |
| Supported symbologies | 1D: EAN13, EAN8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, CodaBar, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, MSI Plessey, RSS-14, limited RSS, extended RSS 2D: QR Code, Data Matrix (ECC200), PDF417 |
| Scan Type | Image CMOS |
| Image sensor | 640*480 |
| Scan Mode | Manual/Continuous/Automatical Scanning |
| Scan angle | Yaw±65°, Rotation 360°, Pitch±60° |
| Precision | 1D≥5mil, 2D≥10mil |
| Depth of scan field | 35-190mm (EAN13,13mil, PCS90%) |
| Error Rate | Less than 1/5million |
| Interface | USB-HID, RS232, USB-COM |
| Physical Parameters |
| Dimensions | 79.7mm*69mm*155mm |
| Weight | 112g |
| Material | ABS+PC |
| Cable Length | 2m straght |
| Environmental Parameters |
| Operating Temperature | -20℃ ~ 60℃ |
| Storage Temperature | -40℃ ~ 70℃ |
| Humidity | 5% to 95% RH (Non-condensing) |
| Shock Resistance | Wihtstands multiple times 1.5 m drops to concrete |
| Electrical Parameters |
| Voltage | DC5V ±5% |
| Current | 135mA (Operating) |
Product Pictures:
FAQ:
1. OEM:
Free customization MOQ: 100/200pcs
2. LOGO
Print your brand logo
3. OUR SCANNERS
100+ model appearance for your choice
50+ barcode scanning solutions to match various usage fields
Support all wired and wireless connection optionson the market
Support the customizationof product labels, outerbox labels, etc.
4. ODM
APPEARANCE DESIGN, Render within 24 hours
HARDWARE ENGINEER, Design PCB boardcircuit within 24 hours
MECHANICAL DESIGN, Produce the structuraldrawing within 24 hours
SOFTWARE ENGINEER, Simulate the softwareeffect within 24 hours
